Thermofox Maxi |
Air temperature monitoring and analysis in miniature
Fully automatic recording of ambient temperature including high-resolution minimum/maximum extreme value detection !
|

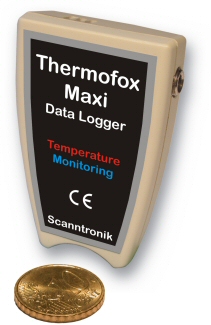

The Thermofox Maxi is one of the most modern miniature data loggers available today.
In its casing, even smaller than a matchbox, it combines an air temperature sensor, a RISC microcontroller, a real-time clock and calendar, memory for up to 16,000 readings (optionally up to 64,000 readings) and a standard battery. All of this together forms a powerful analysis system. The data logger features highly simplified operation, high reliability, intelligent minimum/maximum extreme value recording and optimised battery life (the battery can be replaced at any time).

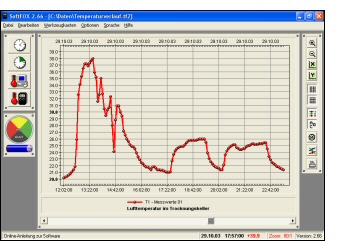

Programming and analysis of the recorded measurement data is performed with the aid of the universal software - SoftFOX that runs under Windows XP, Vista, 7, 8, 8.1, 10 or Windows 11. Newer Microsoft operating systems will also be supported. Once the Thermofox Maxi is connected to the computer via an interface cable, the system is immediately available for readouts and configuration. The software offers many general functions, such as dynamic project management, graphical data analysis, appending of notes, an export function, automatic backup, flexible zooming, and much more. In addition, the data logger can be configured to suit your requirements. Available functions include setting the measuring rhythm (1 second to 24  hours), configuring the real-time clock, setting the condition
for the alarm signal, minimum/maximum monitoring for comprehensive recording of extreme values, battery test, digital
serial number, and much more.
In addition to the measurement data analysis with a PC, the accumulated data can also be printed out on site with the aid of a portable mini-printer. It is also possible to connect an alarm system to the data logger. In this way, it is possible to trigger a telephone alarm signal or SMS alarm message in the event that an air temperature measurement falls outside a predetermined range. An acoustic alarm can also be connect to the data logger. The areas of application for the Thermofox Maxi range from weather stations, refrigerated warehouses, air-conditioner and heating systems, goods transport, automotive technology to process control, and much more. |
|
|
Features:
- Stores 16000 readings (option: 64000), sufficient for several years, depending on rhythm
- Measuring and storing rhythm (1 second to 24 hours) freely adjustable via pc software
- Automatic min/max monitoring for registration of extreme values without interruption
- Crystal oscillator controlled real-time clock and real-time calender integrated
- Alarm output for SMS alarm system, acoustic alarm system, telephone alarm system etc.
- When the memory is full, the oldest readings are first overwritten (ring buffer principle)
- Mini-printer can be connected for mobile data printout
- Measuring data preserved via EEPROM memory even without a battery
- Resolution of the air temperature sensor: 0.1 °C
- Measuring range of the air temperature sensor: -20 °C to +70 °C, Tolerance: < +/- 1 °C
- Calibration certificate available upon request
- Power supply: 3V lithium battery. Can be replaced at any time. Battery life span up to 2 years
- Data logger dimensions: 57 x 35 x 18 mm (h x w x d), 25g including battery
|
Depending on the memory equipment of the system, the active sensors as well as the selected measuring rhythm, the maximum measuring time can be calculated. Here some examples:
|
Memory capacity
|
Active sensors
|
Measuring rhythm
|
Measuring time
|
|
16000 readings
|
air temperature
|
15 minutes
|
166 days
|
|
16000 readings
|
air temperature
|
30 minutes
|
333 days
|
|
64000 readings
|
air temperature
|
15 minutes
|
667 days
|
|
64000 readings
|
air temperature
|
30 minutes
|
1333 days
|
|
|
|
|
| Product |
Price Each |
Quantity |
My Cart |
Thermofox Maxi
Air temperature data logger incl. memory for 16000 readings |
EUR 117.65 (plus VAT)
EUR 140.00 (incl. GER-VAT) |
piece |
 |
SoftFOX - Analysis software
for a detailed pc data analysis. Including USB interface cable. Languages: English and German |
EUR 71.43 (plus VAT)
EUR 85.00 (incl. GER-VAT) |
piece |
|
Memory expansion 64000
Memory for 64000 readings |
EUR 54.62 (plus VAT)
EUR 65.00 (incl. GER-VAT) |
piece |
|
Wall mount
for the Hygrofox Mini,
Thermofox Maxi & Co. |
EUR 21.01 (plus VAT)
EUR 25.00 (incl. GER-VAT) |
piece |
|
Humidity protection coating
for data loggers used in increased humidity areas e.g. covered and protected outdoor area |
EUR 21.01 (plus VAT)
EUR 25.00 (incl. GER-VAT) |
piece |
|
Spare battery (CR2450)
3V lithium button cell battery |
EUR 2.52 (plus VAT)
EUR 3.00 (incl. GER-VAT) |
piece |
|
|
|
Additional accessories for the system:
|
| Product |
Price Each |
Quantity |
My Cart |
Calibration certificate
per sensor or data logger.
Note: Additional adjustment costs will be charged per sensor. |
EUR 29.41 (plus VAT)
EUR 35.00 (incl. GER-VAT) |
piece |
|
Data logger storage case (size 2)
Dimensions: 270 x 185 x 93 mm |
EUR 42.02 (plus VAT)
EUR 50.00 (incl. GER-VAT) |
piece |
|
Mini-Printer
Data printer for the flexible and mobile use on site |
EUR 130.25 (plus VAT)
EUR 155.00 (incl. GER-VAT) |
piece |
|
Remotefox (remote data transfer)
Remote system for the mobile GPRS data transfer as well as alarm via email and SMS for selected data loggers |
EUR 810.92 (plus VAT)
EUR 965.00 (incl. GER-VAT) |
piece |
|
SMS-Alarm-System
Notification via SMS in any alarm situation |
EUR 281.51 (plus VAT)
EUR 335.00 (incl. GER-VAT) |
piece |
|
Acoustic alarm system
Notification via acoustic signal in any alarm situation |
EUR 54.62 (plus VAT)
EUR 65.00 (incl. GER-VAT) |
piece |
|
|
| plus
shipping and handling |
|
|
|
