Hygrofox Mini |
Analysis of air quality in mini format
Recording of air temperature and relative / absolute humidity thanks to
revolutionary digital CMOSens® technology ! |

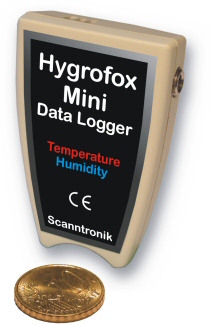

 With Hygrofox Mini you are provided with one of the state-of-the-art data logger systems of today.
In its housing, which is not even the size of a match box, it combines an air temperature sensor, humidity sensor, RISC microcontroller, memory for up to 64,000 readings and a real-time clock into a powerful analysis system. The fully calibrated intelligent CMOSens® sensor for temperature and humidity is characterised in particular by its optimised long-term stability, high precision, reliability and extremely fast response time of less than 3 seconds. There is no need for complex re-calibrations since the sensor can simply be replaced directly on site if required. The integrated lithium battery supplies the system with power for up to two years and can be replaced at any time.

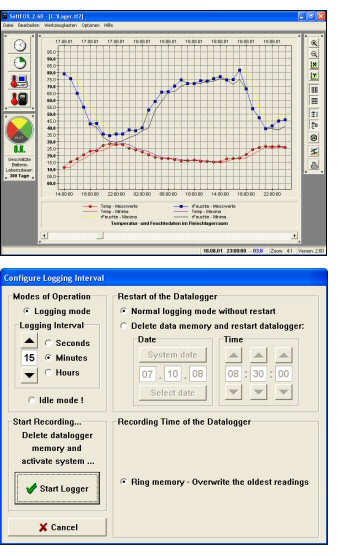

The data logger is programmed and evaluated with the universal SoftFOX software under Microsoft Windows® 7, 8, 8.1, 10, 11 or newer. Once Hygrofox Mini has been connected to a computer via a PC interface cable, the system can be read out or configured immediately. The software offers numerous general functions, such as dynamic project management, graphic data analysis, PC-controlled series of measurement, dew-point calculation, export function, auto backup, flexible zoom and many more.  In addition, you can program the data logger any way you desire. For this purpose, functions such as setting the measurement rhythm (1 second up to 24 hours), delay of the measurement start, alarm condition for SMS alarm or telephone alarm, min./max. monitoring for extreme value recording without interruption, even for large measurement intervals, calibration of the real-time clock, battery test, digital serial number and many more, are available.
Beside the analysis with a PC, the collected data can also be printed directly on site via a portable mini printer. In addition, it is possible to connect an alarm system to the data logger. This way, it is possible, for example, to carry out telephonic alarms in the case of falling below or exceeding defined air temperature and/or humidity values. It is also possible to connect an acoustic alarm system. The areas of application for Hygrofox Mini are almost unlimited and range from weather stations and refrigerated warehouses, air conditioning and heating, transportation and storage of goods, automotive technology, building monitoring to process control, etc. |
|
|
Features:
- Stores 16000 readings (option: 64000), sufficient for years, depending on the interval
- Measuring and storing rhythm (1 second to 24 hours) freely adjustable via pc software
- Delayed measurement start (date and time) can be programmed
- When the memory is full, the oldest readings are first overwritten (ring buffer)
- Dew-point calculation via pc software (also for a threshold not equal to 100 %rH)
- Automatic min/max registration of extreme climatic values without interruption
- Alarm output for SMS alarm system, acoustic alarm system, telephone alarm etc.
- Crystal oscillator controlled real-time clock and real-time calender integrated
- Power supply: 3V lithium battery. Can be replaced at any time. Life span up to 2 years
- Measuring data preserved via EEPROM memory even without batteries
- Measuring range of the air temperature sensor: - 20 °C to 70 °C
- Measuring range of the humidity sensor: 0 %rH to 100 %rH (dew free)
- Typical accuracy of the air temperature sensor: < 0.4 °C at 20 °C
- Typical accuracy of the humidity sensor: < 3.0 %rH between 20 %rH and 80 %rH
- Optional: Climate sensor with a typical accuracy of < 1.5 %rH and < 0.1 °C
- Hysteresis of the humidity sensor at an air temperature of 25 °C: +/- 0.8 %rH
- Resolution of both climate sensors: 0.1 °C / 0.1 %rH
- Repeatability of both climate sensors: 0.1 °C / 0.1 %rH
- Long term stability of the air temperature sensor: < 0.04 °C per year
- Long term stability of the humidity sensor: < 0.5 %rH per year
- Calibration certificate available upon request
- Data logger dimensions: 57 x 35 x 18 mm (h x w x d), 25g including battery
|
Depending on the memory equipment of the system, the active sensors as well as the selected measuring rhythm, the maximum measuring time can be calculated. Here some examples:
|
Memory capacity
|
Active sensors
|
Measuring rhythm
|
Measuring time
|
|
16000 readings
|
relative humidity
air temperature
|
15 minutes
|
83 days
|
|
16000 readings
|
relative humidity
air temperature
|
30 minutes
|
167 days
|
|
64000 readings
|
relative humidity
air temperature
|
15 minutes
|
333 days
|
|
64000 readings
|
relative humidity
air temperature
|
30 minutes
|
667 days
|
|
|
|
| Product |
Price Each |
Quantity |
My Cart |
Hygrofox Mini
Data logger incl. sensors and data memory for 16000 readings |
EUR 163.87 (plus VAT)
EUR 195.00 (incl. GER-VAT) |
piece |
 |
SoftFOX - Analysis software
for a detailed pc data analysis. Including USB interface cable. Languages: English and German |
EUR 71.43 (plus VAT)
EUR 85.00 (incl. GER-VAT) |
piece |
|
Memory expansion 64000
Memory for 64000 readings |
EUR 54.62 (plus VAT)
EUR 65.00 (incl. GER-VAT) |
piece |
|
Increased sensor accuracy
Typical: 1,5%rH and 0,1°C
Next Generation |
EUR 21.01 (plus VAT)
EUR 25.00 (incl. GER-VAT) |
piece |
|
Wall mount
for the Hygrofox Mini,
Thermofox Maxi & Co. |
EUR 21.01 (plus VAT)
EUR 25.00 (incl. GER-VAT) |
piece |
|
Humidity protection coating
for data loggers used in increased humidity areas e.g. covered and protected outdoor area |
EUR 21.01 (plus VAT)
EUR 25.00 (incl. GER-VAT) |
piece |
|
Seal labels (20 x labels)
prevent data logger manipulation |
EUR 8.40 (plus VAT)
EUR 10.00 (incl. GER-VAT) |
piece |
|
Spare battery (CR2450)
3V lithium button cell battery |
EUR 2.52 (plus VAT)
EUR 3.00 (incl. GER-VAT) |
piece |
|
|
|
Additional accessories for the system:
|
| Product |
Price Each |
Quantity |
My Cart |
Calibration certificate
per sensor or data logger.
Note: Additional adjustment costs will be charged per sensor. |
EUR 29.41 (plus VAT)
EUR 35.00 (incl. GER-VAT) |
piece |
|
Data logger storage case (size 2)
Dimensions: 270 x 185 x 93 mm |
EUR 42.02 (plus VAT)
EUR 50.00 (incl. GER-VAT) |
piece |
|
Remotefox (remote data transfer)
Remote system for the mobile GPRS data transfer as well as alarm via email and SMS for selected data loggers |
EUR 810.92 (plus VAT)
EUR 965.00 (incl. GER-VAT) |
piece |
|
SMS-Alarm-System
Notification via SMS in any alarm situation |
EUR 281.51 (plus VAT)
EUR 335.00 (incl. GER-VAT) |
piece |
|
Acoustic alarm system
Notification via acoustic signal in any alarm situation |
EUR 54.62 (plus VAT)
EUR 65.00 (incl. GER-VAT) |
piece |
|
|
| plus
shipping and handling |
|
|
|
